Learn how a ring die refurbishment machine helps feed mills restore die holes, stabilize pellet quality, reduce downtime, and control pellet mill maintenance cost.

Introduction:

In many feed mills, ring die problems do not appear suddenly. They often start with small changes: shorter ring die service life, faster roller shell wear, unstable pellet quality, lower capacity, blocked holes, higher pellet mill current, or more frequent shutdowns.

When these problems are not checked in time, the plant may face higher spare parts cost, unexpected downtime, poor pellet appearance, and unnecessary replacement of ring dies that may still be repairable.

A ring die refurbishment machine is not simply a “repair machine.” Its real value is to help feed mills inspect, clean, grind, and restore the working condition of used ring dies in a more controlled way. For maintenance teams, it provides a practical method to decide whether a ring die should be reused, repaired, or replaced.

Key Takeaway:

A ring die refurbishment machine can help extend usable ring die life when the die body is still structurally safe and the holes are suitable for repair.

The key functions are inner surface grinding, hole cleaning, and inner chamfer repair. These processes help remove residual feed, improve die hole entry condition, and restore a more even working surface.

However, refurbishment is not suitable for every used ring die. Before repair, the feed mill should check cracks, deformation, effective die thickness, hole wear, hole blockage, roller shell matching, and the real production problem on site.

The best result comes from combining machine refurbishment with proper pellet mill operation, raw material control, magnetic separation, roller gap setting, and regular maintenance records.

Main Body:

1. Why Ring Die Problems Increase Feed Mill Operating Cost

A worn or blocked ring die affects more than one spare part. It can influence the whole pellet mill system.

Common site symptoms include:

Many plants focus only on replacing the ring die. This may solve the problem temporarily, but it does not always answer the real question:

Is the ring die truly finished, or is it only blocked, uneven, or poorly maintained?

This distinction is important. A repairable ring die may still have value. A non-repairable ring die should not be forced back into production.

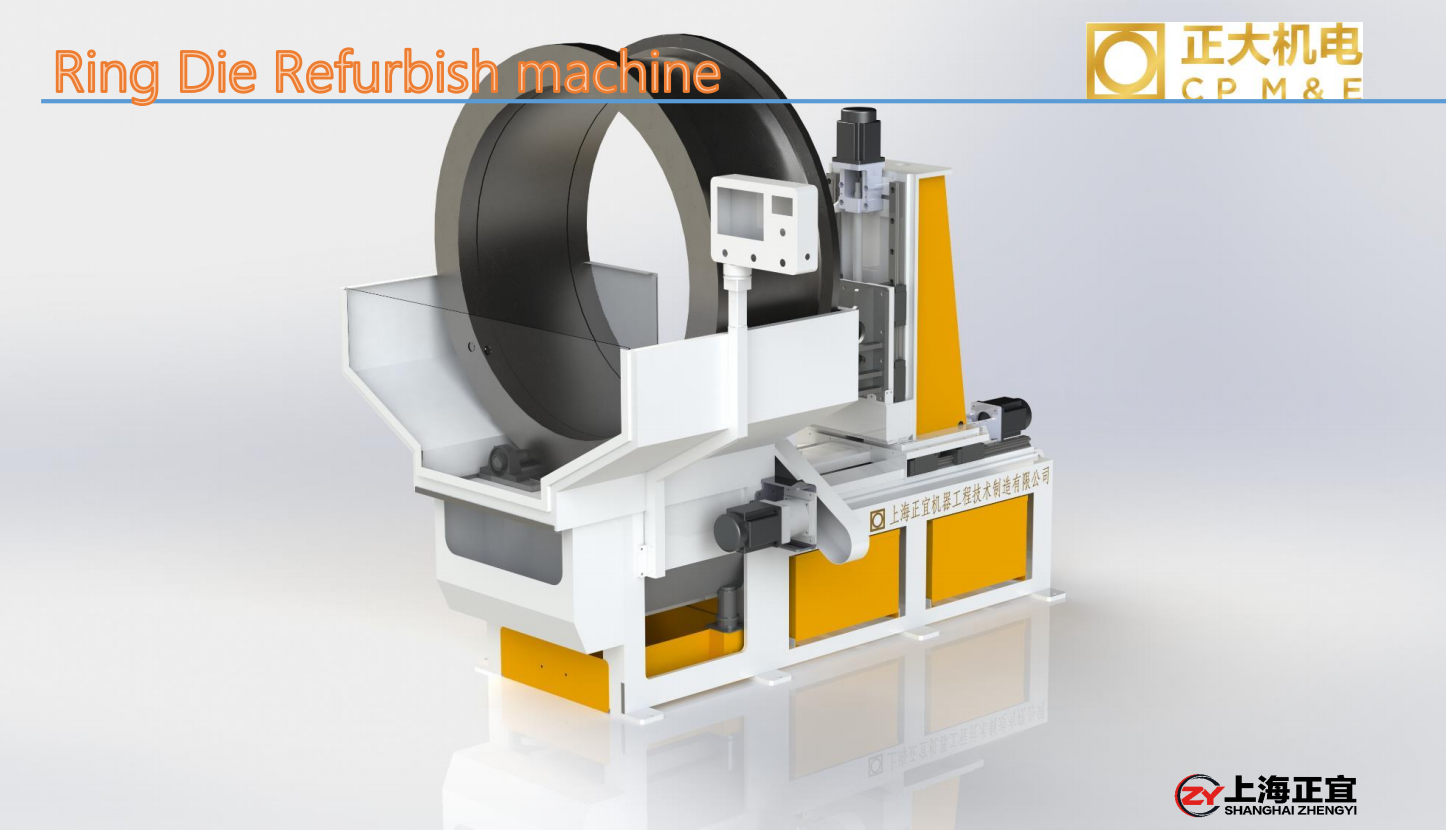

2. What a Ring Die Refurbishment Machine Actually Does

A ring die refurbishment machine is designed to process used ring dies after production wear. Its main functions normally include:

1. Grinding the inner working surface of the ring die
   This helps remove uneven wear marks and restore a smoother internal surface.
2. Cleaning blocked die holes
   Residual feed, hardened material, or metal particles inside the holes can reduce production efficiency. Hole cleaning helps reopen the passage.
3. Repairing the inner chamfer / flare mouth of the die holes
   The inlet area of each hole affects how material enters the compression channel. If the chamfer is worn, damaged, or uneven, pellet forming may become unstable.

These three processes work together. Grinding only the surface without clearing the holes may not solve capacity loss. Cleaning the holes without checking the inlet chamfer may not improve material entry. Chamfer repair without checking cracks or remaining die thickness may create hidden risks.

A professional refurbishment decision should always start with inspection, not machining.

3. Technical Factors to Check Before Refurbishing a Ring Die

Not every ring die is worth repairing. Before using a ring die refurbishment machine, the maintenance team should review the following factors.

3.1 Ring Die Size and Machine Compatibility

Before repair, confirm the basic ring die dimensions:

For many refurbishment machines, the required data may include hole diameter, ring die thickness, number of holes, number of rows, and row pitch. Without this data, it is difficult to estimate the repair process accurately.

3.2 Hole Diameter and Compression Ratio

Hole diameter and compression ratio directly affect pellet forming. A small hole diameter usually requires more careful cleaning and tool selection. If the hole is too small, mechanical cleaning may not be recommended or may require special confirmation.

The compression ratio should not be changed casually during repair. Refurbishment is mainly to restore the usable condition of the existing die, not to redesign the die without calculation.

Before repair, confirm:

• Hole diameter
• Effective hole length
• Total die thickness
• Relief depth, if applicable
• Feed type: poultry feed, livestock feed, aqua feed, biomass, palm kernel meal, or other materials
• Current pellet quality problem

If pellet quality is poor, the reason may not be the ring die alone. It may also come from formula, grinding fineness, moisture, steam conditioning, roller gap, or material flow.

3.3 Effective Thickness and Structural Safety

A used ring die may look repairable from the surface, but the remaining effective thickness may already be insufficient.

Before refurbishment, check:

• Is there any visible crack?
• Is the ring die deformed?
• Is the inner working surface deeply worn?
• Are the holes enlarged or oval?
• Is the inlet chamfer severely damaged?
• Is there abnormal wear in one local area?
• Has the die been repaired many times before?

If the die has cracks, serious deformation, or unsafe remaining structure, replacement is safer than refurbishment.

A wrong repair decision may reduce short-term cost but increase production risk.

4. How Each Refurbishment Function Helps the Feed Mill

4.1 Inner Surface Grinding

The inner working surface of the ring die contacts the roller shell during pelletizing. After long-term operation, this surface may become uneven, scratched, or locally worn.

Grinding can help:

• Improve contact condition between ring die and roller shell
• Reduce local high spots
• Restore a more uniform working surface
• Support more stable pellet mill operation

However, grinding should be controlled. Removing too much material may shorten die life or affect the effective structure. A careful grinding process should remove only what is necessary.

For maintenance teams, the practical rule is simple:

Grind to restore working condition, not to make the ring die look new.

4.2 Hole Cleaning

Blocked holes are common in feed mills. They may be caused by residual feed, poor cleaning after shutdown, high moisture material, oil content, formula changes, die cooling problems, or material hardening inside the holes.

Hole cleaning helps:

• Reopen blocked die holes
• Improve material passage
• Reduce unnecessary pressure load
• Support more stable capacity
• Reduce the chance of judging a blocked die as a scrapped die

For hole cleaning, the drill diameter should be selected carefully. In general practice, the cleaning drill is usually slightly smaller than the die hole diameter to avoid damaging the hole wall.

The goal is not to enlarge the hole. The goal is to remove residual material safely.

4.3 Inner Chamfer / Flare Mouth Repair

The inlet chamfer, also called the flare mouth, is a small but important area. It affects how material enters the die hole.

If the chamfer is damaged or uneven, the feed may not enter smoothly. This can contribute to:

• Lower pellet quality
• Higher fines
• Uneven pellet forming
• Reduced capacity
• Abnormal pressure at the die surface

Chamfer repair helps restore the entry condition of the die holes. For pellet mills running small-hole dies, this process requires more careful tool selection and positioning accuracy.

One practical point: when used ring dies still contain residual feed, coolant may mix with the feed and create new blockage. In some cases, compressed air can be a better cleaning method during chamfering, depending on site conditions.

5. Why Ring Die Refurbishment Should Be Linked with Roller Shell Inspection

A ring die does not work alone. It works with the roller shell.

If the roller shell is badly worn, incorrectly matched, or not adjusted properly, a repaired ring die may still perform poorly.

Before or after refurbishment, check the roller shell condition:

Incorrect roller gap can shorten both ring die and roller shell life. If the roller is too tight, it may increase mechanical load and wear. If it is too loose, material may not be pressed effectively, causing poor pellet quality or low output.

6. Refurbishment Is Useful, But It Cannot Replace Root Cause Analysis

A ring die refurbishment machine can help recover a used die, but it cannot solve every pellet mill problem.

If the same problems return quickly after repair, the plant should investigate the root cause.

Possible causes include:

• Raw material particle size is too coarse or inconsistent
• Material moisture is unstable
• Steam conditioning is poor
• Magnetic separation is insufficient
• Metal impurities damage die holes
• Roller gap is incorrectly adjusted
• Pellet mill is overloaded
• Ring die material or hardness is not suitable for the application
• Die specification does not match formula and production target
• Shutdown cleaning procedure is poor

For example, if a plant frequently finds hard blockage inside die holes, the maintenance team should not only clean the holes. They should also review formula, moisture, shutdown procedure, and whether material remains inside the die after production stops.

Good refurbishment is a technical process. Good maintenance is a system.

7. Application Scenarios for a Ring Die Refurbishment Machine

A ring die refurbishment machine is especially useful for feed mills that:

• Use many ring dies every year
• Operate multiple pellet mills
• Face frequent die hole blockage
• Need to reduce spare parts cost
• Want to build an internal ring die maintenance process
• Have high downtime cost
• Need better control over die repair quality
• Want to evaluate used dies before replacement

It can also support maintenance workshops, pellet mill service teams, and spare parts departments that handle ring die repair for multiple plants.

For a single feed mill, the investment should be evaluated based on ring die consumption, repair frequency, downtime cost, labor cost, and whether the maintenance team can manage the process properly.

8. Suggested Image Ideas for This Article

To help overseas customers understand the process clearly, the article page can include the following images:

1. Used ring die before refurbishment
   Show blocked holes, uneven inner surface, or worn chamfer.
2. Inner surface grinding process
   Show the grinding wheel contacting the internal working surface.
3. Hole cleaning process
   Show residual feed being removed from die holes.
4. Chamfer repair process
   Show the tool working on the inlet area of the holes.
5. Inspection checklist photo
   Show hole diameter measurement, die thickness check, and visual crack inspection.
6. Before-and-after comparison
   Show restored hole entry condition and cleaned internal surface.

Image captions should be technical, not promotional. For example:

“Inner chamfer repair helps restore material entry condition before pelletizing.”

This type of caption is more useful than simply saying “High quality machine.”

Practical Checklist:

Before deciding whether to refurbish a ring die, check the following points on site:

• Confirm pellet mill brand and model.
• Record ring die inner diameter, outer diameter, working face width, and total width.
• Confirm hole diameter, effective working length, total thickness, and compression ratio.
• Check whether the ring die has cracks or deformation.
• Inspect whether the inner working surface is uneven or deeply worn.
• Check whether holes are blocked by residual feed or foreign material.
• Confirm whether the inlet chamfer / flare mouth is worn or damaged.
• Review current ring die service hours and roller shell service hours.
• Check roller shell wear condition and roller gap setting.
• Review pellet mill current curve, capacity change, and pellet quality issue.
• Check raw material moisture, particle size, steam conditioning, and formula changes.
• Confirm whether magnetic separation is working properly before the pellet mill.
• Decide whether the ring die should be repaired, reused with monitoring, or replaced.

FAQ:

1. Can every used ring die be refurbished?

No. A ring die with cracks, serious deformation, unsafe remaining thickness, or severely damaged holes should not be repaired blindly. Refurbishment is suitable only when the die body is still structurally safe and the worn areas can be restored within a reasonable range.

2. How does ring die refurbishment improve pellet quality?

Refurbishment can improve pellet quality by cleaning blocked holes, restoring the inlet chamfer, and smoothing the internal working surface. These changes help material enter the die holes more evenly. However, pellet quality also depends on formula, moisture, conditioning, roller gap, and pellet mill operation.

3. What information is needed before confirming a ring die refurbishment solution?

The basic information includes pellet mill model, ring die drawing, hole diameter, die thickness, working width, number of holes, number of rows, row pitch, feed type, current service hours, photos of wear condition, and the current production problem.

4. Is hole cleaning the same as changing the ring die hole size?

No. Proper hole cleaning should remove residual feed or blockage without enlarging the die holes. The cleaning tool should be selected carefully according to the actual hole diameter.

5. Should coolant or compressed air be used during chamfer repair?

It depends on the site condition. If the used ring die still contains residual feed, coolant may mix with the material and cause new blockage. In such cases, compressed air may be more practical for cleaning during the process.

Conclusion:

A ring die refurbishment machine can help feed mills reduce maintenance cost, improve ring die utilization, and build a more systematic pellet mill maintenance process. Its value is not only in grinding, cleaning, or chamfering. The real value is in making a better technical decision before replacing or reusing a ring die.

For feed mills, the correct question is not simply:

“Can this ring die be repaired?”

The better question is:

“Is this ring die still safe and economical to refurbish based on its wear condition, hole structure, service hours, pellet mill operation, and production problem?”

Shanghai Zhengyi Machinery can help review your ring die condition based on drawings, photos, specifications, pellet mill model, hole diameter, feed type, current service hours, and actual site problems. With this information, we can provide a more practical recommendation on whether the ring die is suitable for refurbishment, what process may be needed, and what technical risks should be checked before repair.
